1/4" Cut, 2-Flute Compression Router Bit, 1/4" Shank, 2" Extra Long Cut Length (4" OAL), Blue Nano Coated Solid Carbide Up-Down Spiral for CNC Plywood, MDF 1/4" Extra long (1 pc) Compression Cut

In Stock. Leaves warehouse within 2 - 3 business days

$188.00 AUD
Maximum quantity available reached.
Start shopping today and enjoy free shipping on every purchase.
More detailed product descriptions
Free Shipping Australia Wide
100% Safe & Secure Checkout
100 Days Return Policy *
1 Year Warranty *

1/4" Cut, 2-Flute Compression Router Bit, 1/4" Shank, 2" Extra Long Cut Length (4" OAL), Blue Nano Coated Solid Carbide Up-Down Spiral for CNC Plywood, MDF

Product Features

  • Splinter-Free Double-Sided Finish: Specifically engineered for Laminated Plywood, Melamine, and Veneered panels. The unique compression geometry (Up-cut tip + Down-cut shank) shears wood fibers from both outer surfaces inward, leaving a crisp, clean edge on both top and bottom surfaces. Note: Ensure the first pass depth is deep enough to engage the compression zone.

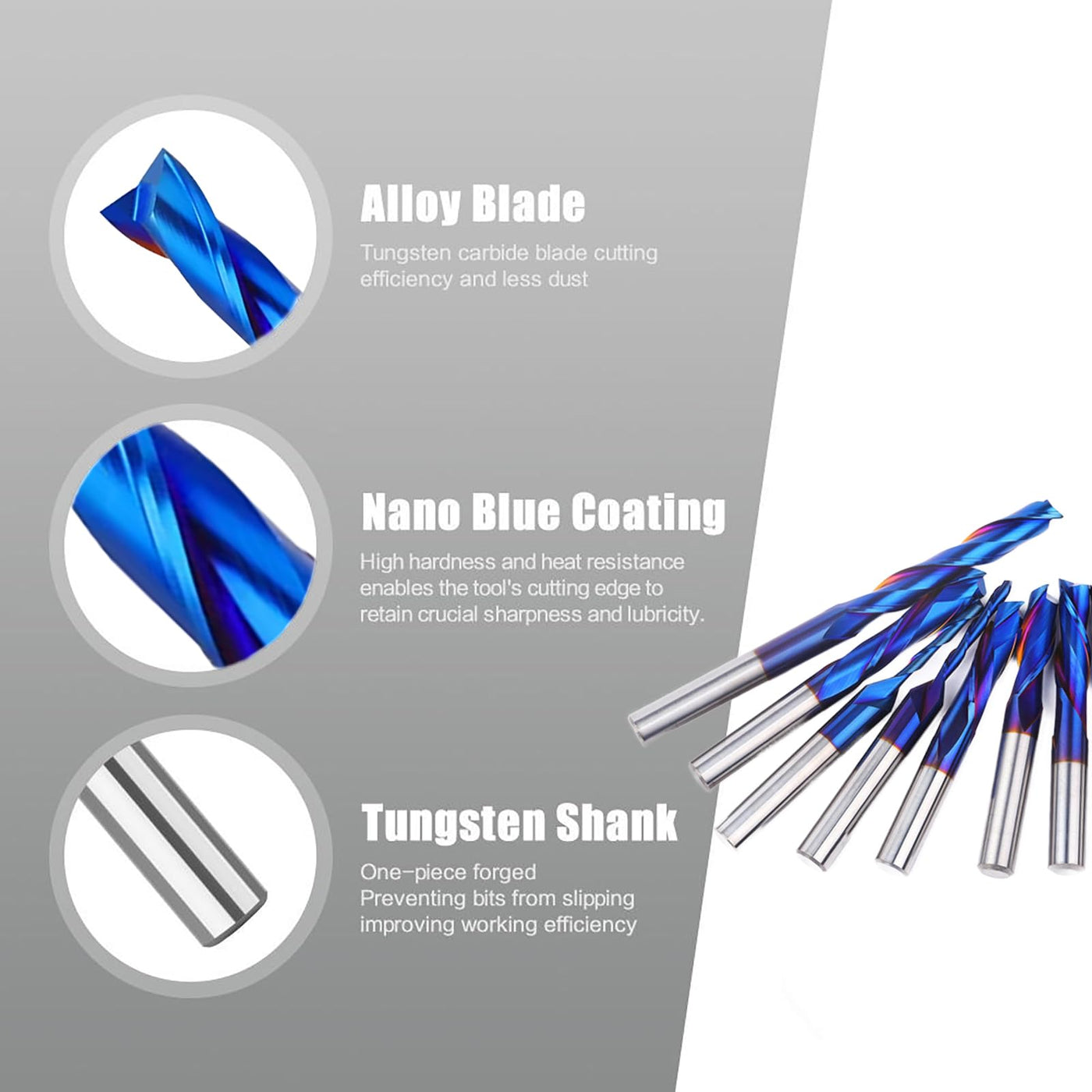

  • Blue Nano Coated Performance: Features an advanced industrial Blue Nano Coating that significantly increases heat resistance and reduces friction. Combined with Micro-grain Carbide, this bit prevents resin build-up (pitch) and stays sharp 3X longer than standard uncoated bits, even during dry machining.

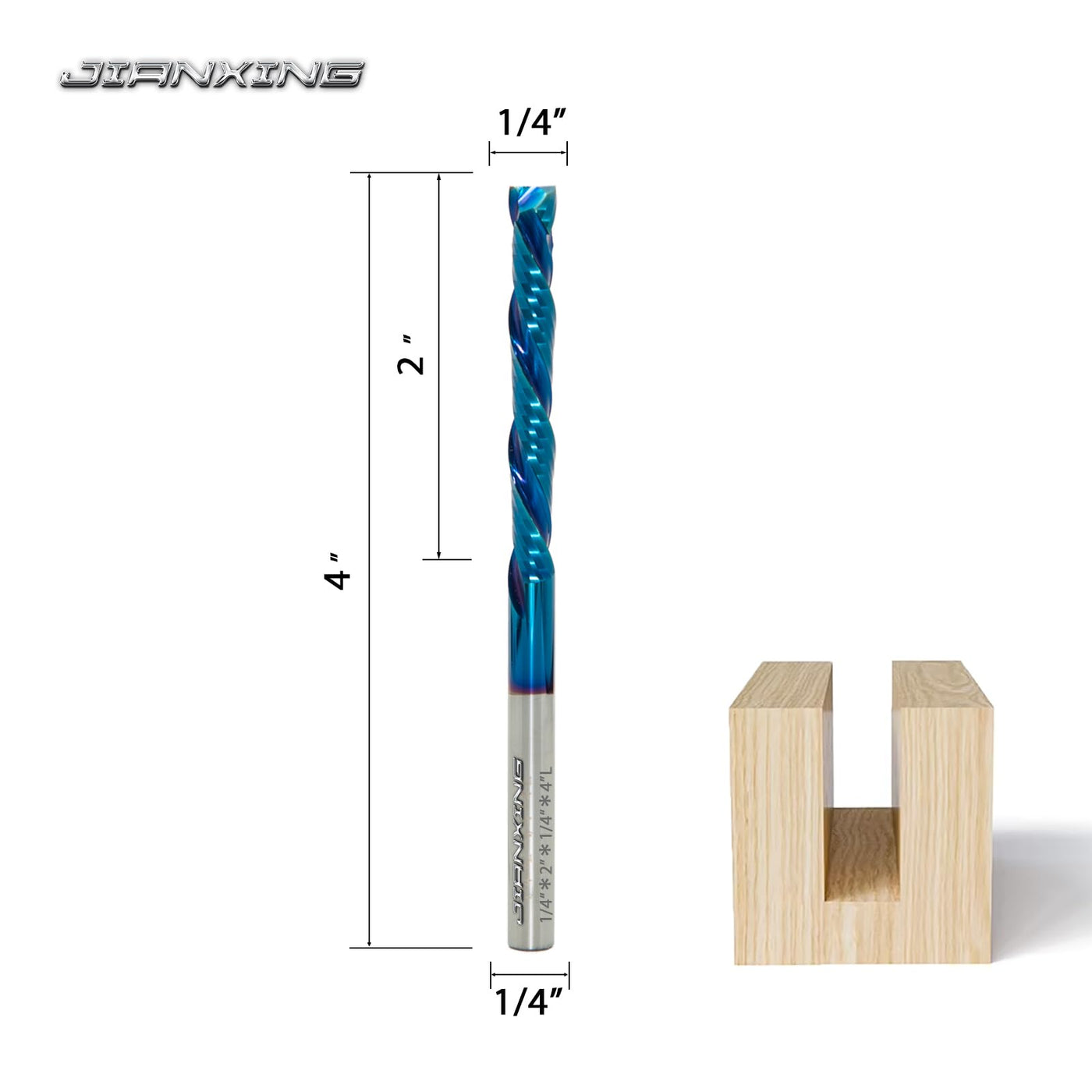

  • 2-Inch Extra Long Reach: Features an extended 2" cutting length (4" Overall Length) for deep mortising and trimming. Critical Tech Note: With a high 8:1 length-to-diameter ratio, this bit is susceptible to deflection (bending) and vibration. We strongly recommend reducing Feed Rate by 40% and taking multiple shallow passes (never cut full depth at once) to maintain a smooth finish and prevent breakage.
  • Precision Balanced: Manufactured with strictly controlled concentricity. The standard 1/4" (6.35mm) Shank ensures a secure, slip-free fit in collets. Pro Tip: Insert the shank as far as possible into the collet (min 1-inch depth) to provide maximum support for this extra-long cutter.

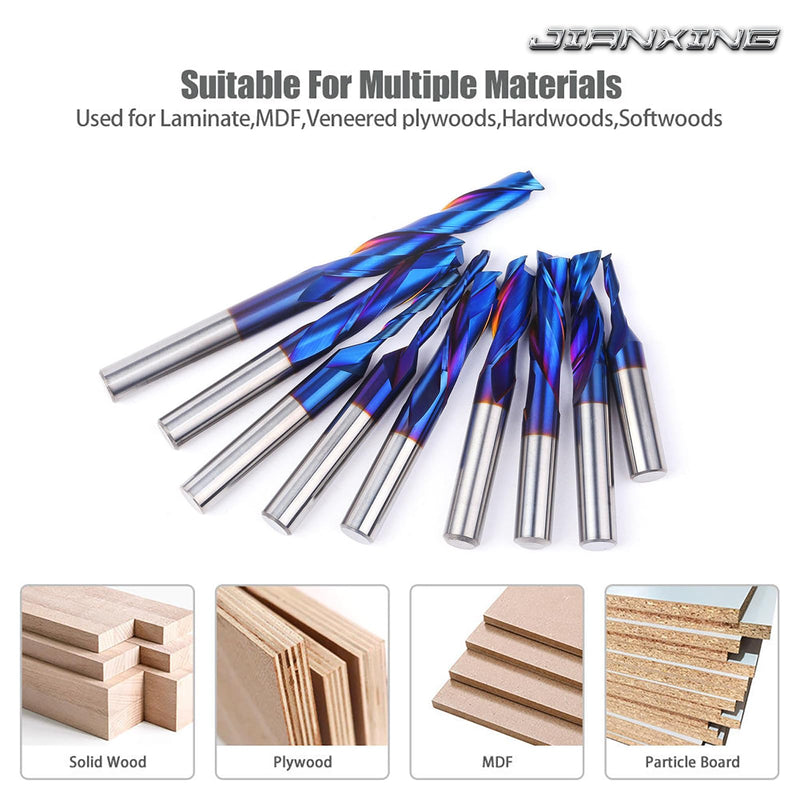

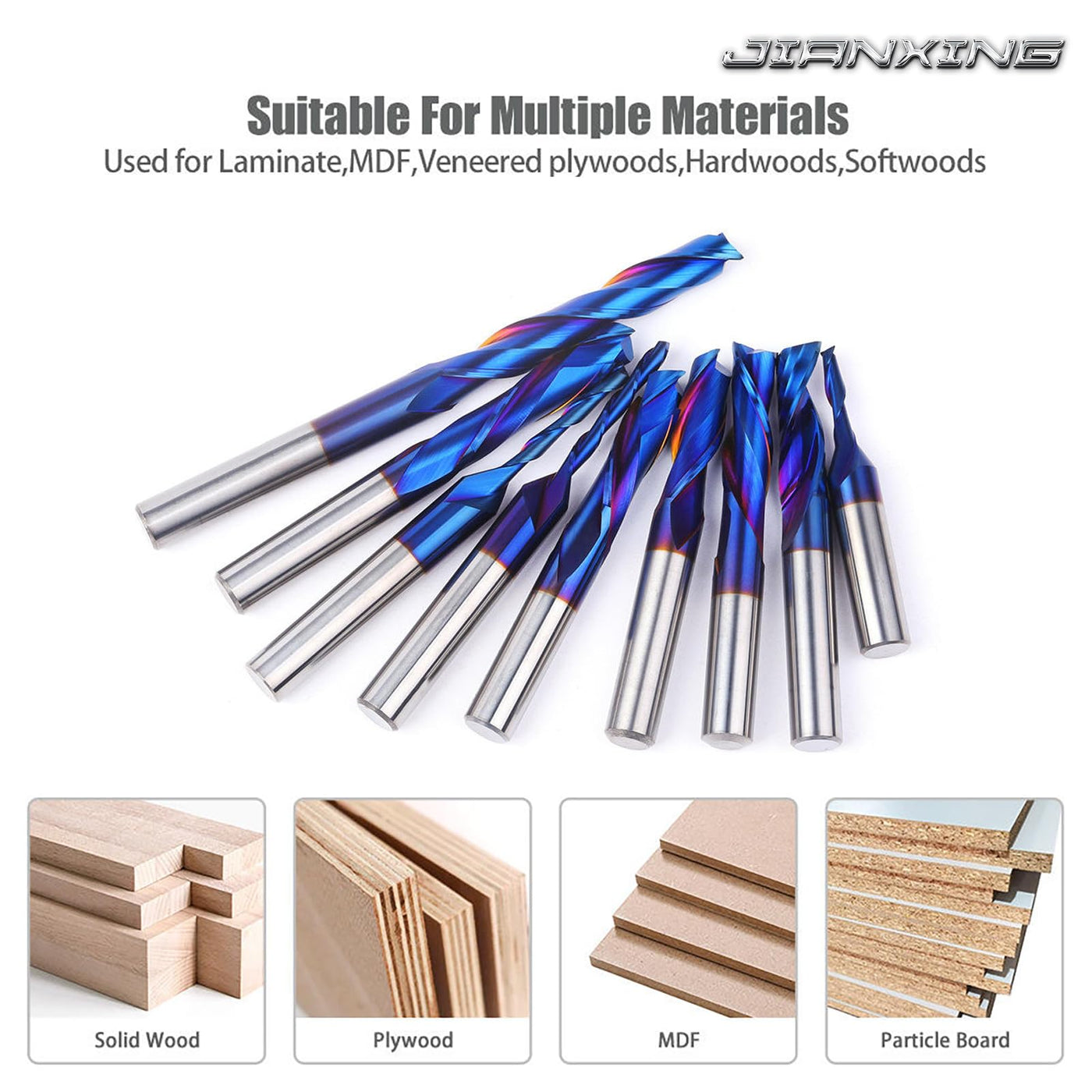

  • CNC Plywood Mastery: The ultimate solution for nesting and sizing full sheets of Plywood, MDF, and Particle Board. Designed primarily for CNC machining centers. Warning: Due to the 4-inch total length, this bit creates significant leverage. NOT recommended for handheld routers due to safety risks and difficulty in maintaining perpendicularity.
