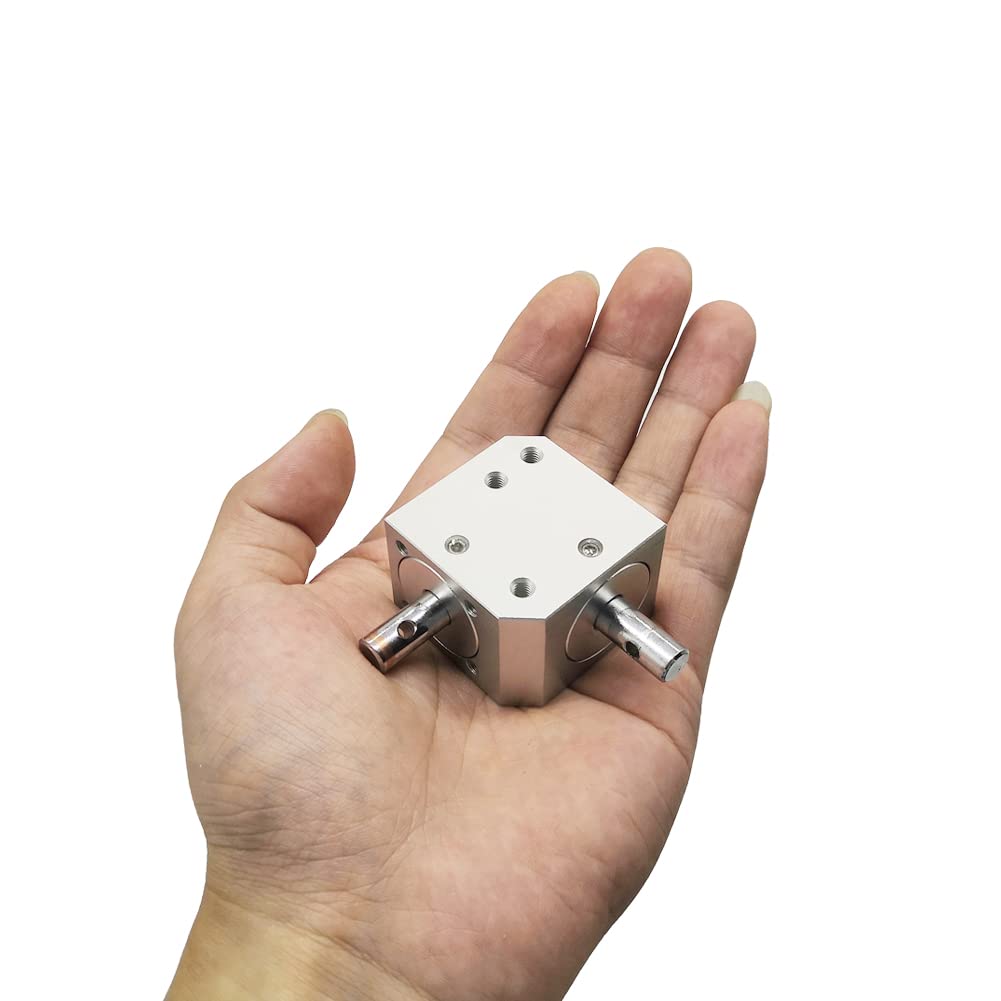

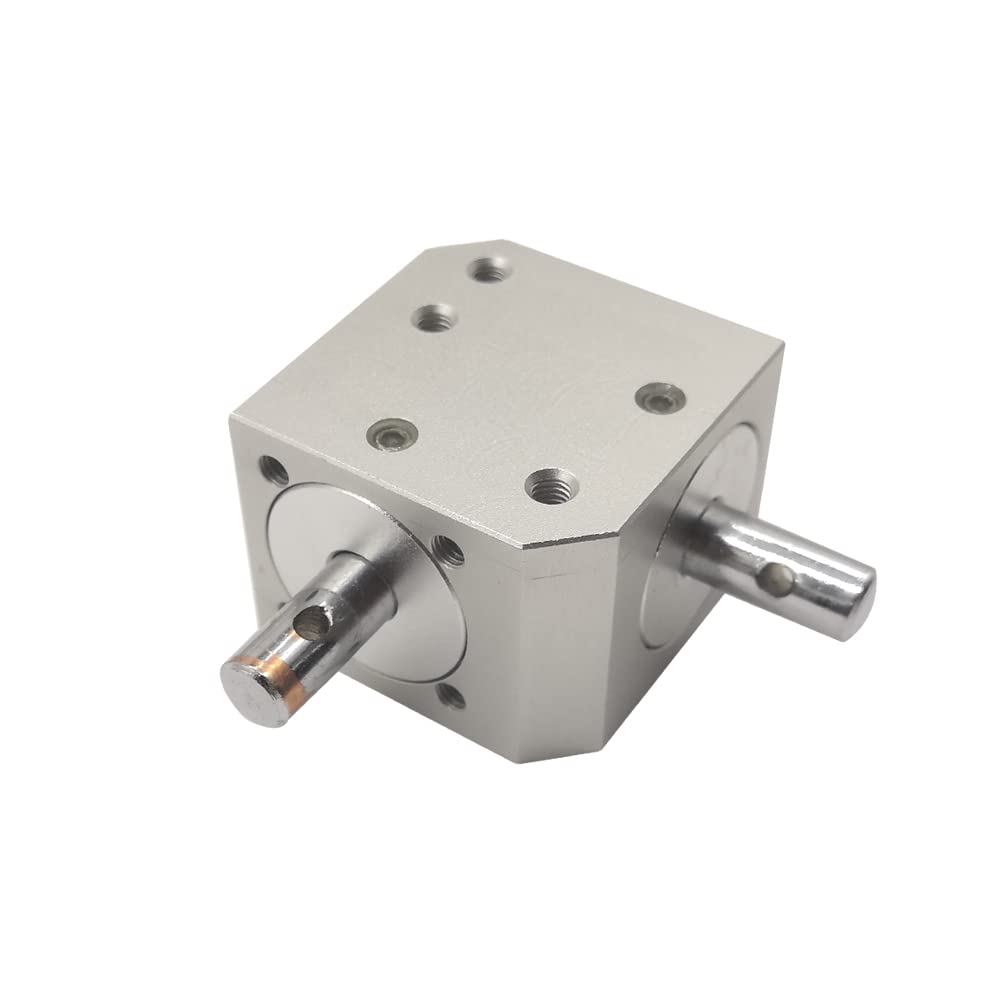

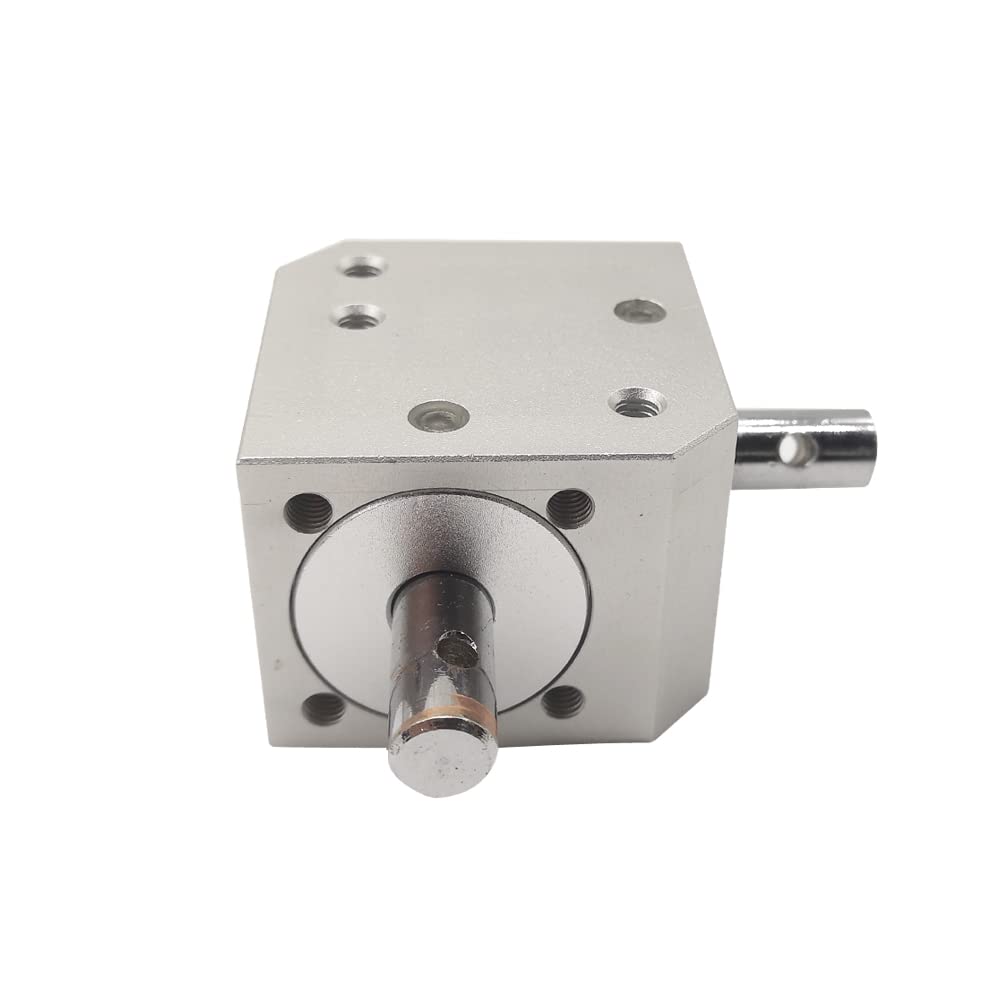

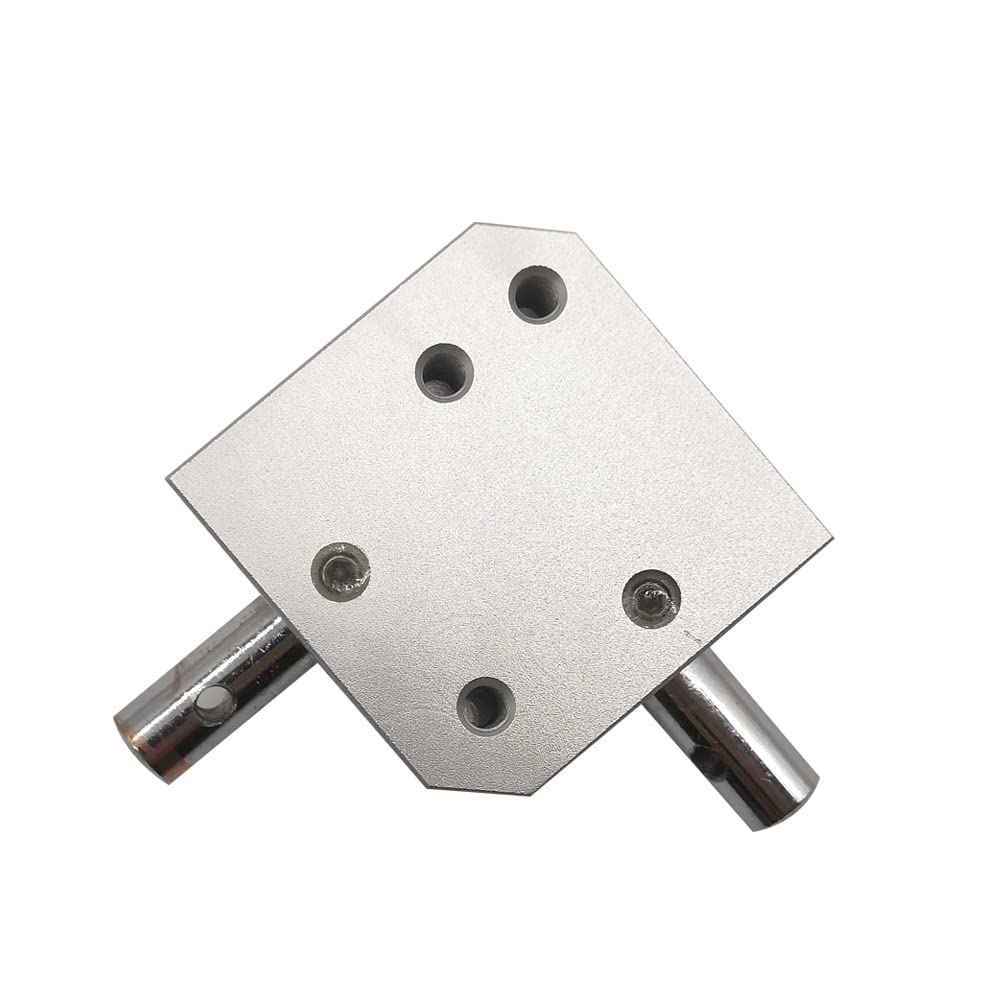

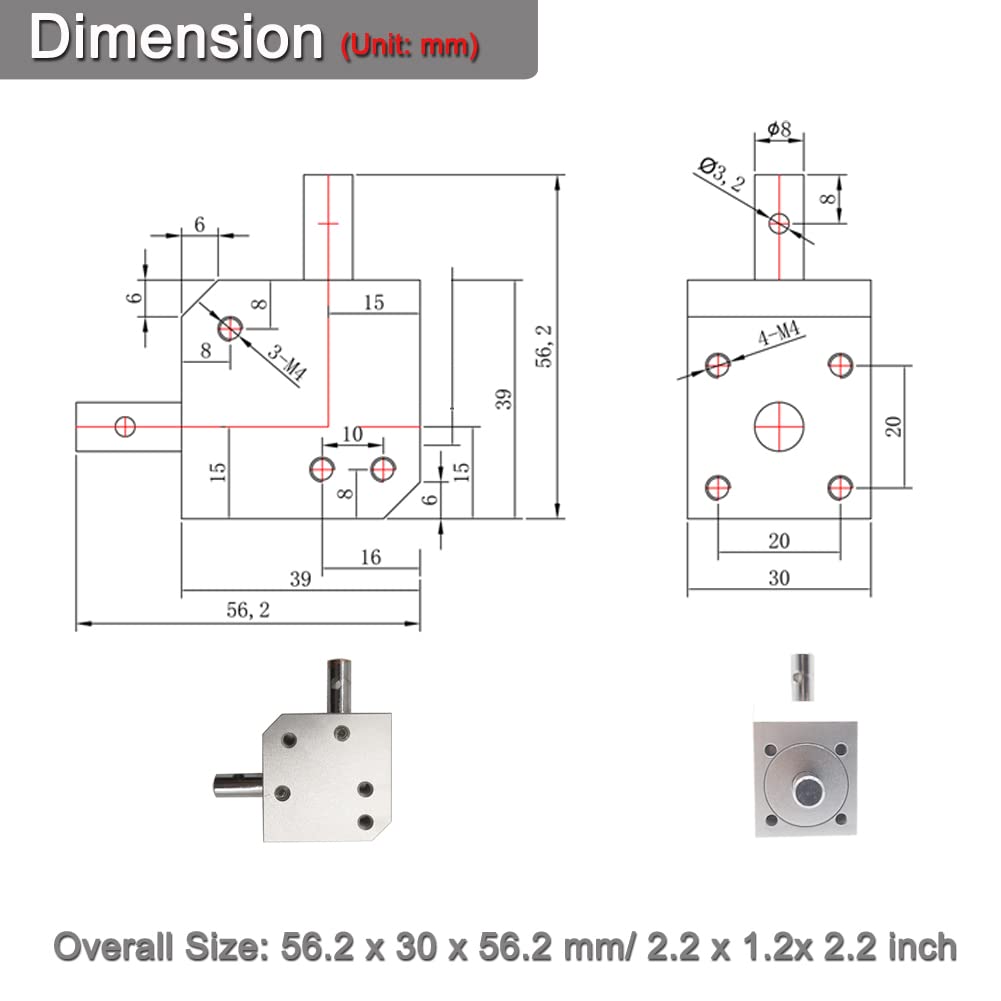

{"id":7889844666548,"title":"1:1 Right Angle Tapered Bevel Gearbox Mini 1 Module 20 Teeth 90° Angle Drive Steering Gear Device Simple Mechanical DIY Module with 8mm Shaft 1 short output shaft","handle":"1-1-right-angle-tapered-bevel-gearbox-mini-1-module-20-teeth-90-angle-drive-steering-gear-device-simple-mechanical-diy-module-with-8mm-shaft-1-short-output-shaft","description":"\u003ch3\u003e1:1 Right Angle Tapered Bevel Gearbox Mini 1 Module 20 Teeth 90° Angle Drive Steering Gear Device Simple Mechanical DIY Module with 8mm Shaft\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e1:1 Right Angle Bevel Gearbox for Simple DIY Mechanical Application.\nSpecification: built-in 1 module 20 teeth bevel gears, 8 mm\/ 0.3\" shaft, max\ntorque rating: 5 N.M\/ 3.6 ft.lbs , max rotation speed: 1500 rpm Motor drive\ncan be realized with coupling and belt pulley gear. Material: Aluminum alloy \u0026amp;\n45 Steel, Overall Size: 56.2 x 56.2 x 30 mm\/ 2.2 x 2.2 x 1.2 inch. Note: it's\nsimple steering gear, can not used for high torque and high accuracy CNC\napplication, and the input \u0026amp; output shaft is not avaliable to replace. Note:\nthe scratches on the shaft were left for installation, it's not used, pls do\nnot buy if you mind.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e1:1 L-shaped Right Angle Bevel Gearbox for Simple DIY Mechanical Application, 1 Input Shaft Drives 1 Short Output Shaft.\u003c\/li\u003e\n \u003cli\u003eSpecification: built-in 1 module 20 teeth bevel gears, 8 mm\/ 0.3\" shaft, max torque rating: 5 N.M\/ 3.6 ft.lbs , max rotation speed: 1500 rpm, backlash: 5 degree, if 3D file(stp) is needed, free to contact us.\u003c\/li\u003e\n \u003cli\u003eMotor drive can be realized with coupling and belt pulley gear.\u003c\/li\u003e\n \u003cli\u003eMaterial: Aluminum alloy with sandblasting oxidation \u0026amp; Stainless Steel Shaft, Overall Size: 56.2 x 30 x 56.2 mm\/ 2.2 x 1.2 x 2.2 inch.\u003c\/li\u003e\n \u003cli\u003eNote: it's simple steering gear, not recommended for high torque and high accuracy CNC application.\u003c\/li\u003e\n \u003c\/ul\u003e","published_at":"2024-11-20T09:40:59+11:00","created_at":"2024-11-20T02:19:32+11:00","vendor":"PGFUN","type":"Rack \u0026 Pinion Gears","tags":["industrial_Aug2024_update"],"price":25800,"price_min":25800,"price_max":25800,"available":true,"price_varies":false,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":43727567061172,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"B0BJVKJ175","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"1:1 Right Angle Tapered Bevel Gearbox Mini 1 Module 20 Teeth 90° Angle Drive Steering Gear Device Simple Mechanical DIY Module with 8mm Shaft 1 short output shaft","public_title":null,"options":["Default Title"],"price":25800,"weight":181,"compare_at_price":null,"inventory_management":"shopify","barcode":"777723135431","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/auspowers.com\/cdn\/shop\/files\/B0BJVKJ175.jpg?v=1732085554","\/\/auspowers.com\/cdn\/shop\/files\/41DUrbmUXSL.jpg?v=1732029574","\/\/auspowers.com\/cdn\/shop\/files\/51q3it7cbjL.jpg?v=1732029574","\/\/auspowers.com\/cdn\/shop\/files\/51DokoerBKL.jpg?v=1732029574","\/\/auspowers.com\/cdn\/shop\/files\/51RwyaPeaML.jpg?v=1732029574"],"featured_image":"\/\/auspowers.com\/cdn\/shop\/files\/B0BJVKJ175.jpg?v=1732085554","options":["Title"],"media":[{"alt":"[Australia - AusPower] - 1:1 Right Angle Tapered Bevel Gearbox Mini 1 Module 20 Teeth 90° Angle Drive Steering Gear Device Simple Mechanical DIY Module with 8mm Shaft 1 short output shaft ","id":30983098892468,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/B0BJVKJ175.jpg?v=1732085554"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/B0BJVKJ175.jpg?v=1732085554","width":1001},{"alt":"[Australia - AusPower] - 1:1 Right Angle Tapered Bevel Gearbox Mini 1 Module 20 Teeth 90° Angle Drive Steering Gear Device Simple Mechanical DIY Module with 8mm Shaft 1 short output shaft ","id":30980441276596,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/41DUrbmUXSL.jpg?v=1732029574"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/41DUrbmUXSL.jpg?v=1732029574","width":1001},{"alt":"[Australia - AusPower] - 1:1 Right Angle Tapered Bevel Gearbox Mini 1 Module 20 Teeth 90° Angle Drive Steering Gear Device Simple Mechanical DIY Module with 8mm Shaft 1 short output shaft ","id":30980441309364,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51q3it7cbjL.jpg?v=1732029574"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51q3it7cbjL.jpg?v=1732029574","width":1001},{"alt":"[Australia - AusPower] - 1:1 Right Angle Tapered Bevel Gearbox Mini 1 Module 20 Teeth 90° Angle Drive Steering Gear Device Simple Mechanical DIY Module with 8mm Shaft 1 short output shaft ","id":30980441342132,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51DokoerBKL.jpg?v=1732029574"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51DokoerBKL.jpg?v=1732029574","width":1001},{"alt":"[Australia - AusPower] - 1:1 Right Angle Tapered Bevel Gearbox Mini 1 Module 20 Teeth 90° Angle Drive Steering Gear Device Simple Mechanical DIY Module with 8mm Shaft 1 short output shaft ","id":30980441374900,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1001,"width":1001,"src":"\/\/auspowers.com\/cdn\/shop\/files\/51RwyaPeaML.jpg?v=1732029574"},"aspect_ratio":1.0,"height":1001,"media_type":"image","src":"\/\/auspowers.com\/cdn\/shop\/files\/51RwyaPeaML.jpg?v=1732029574","width":1001}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003ch3\u003e1:1 Right Angle Tapered Bevel Gearbox Mini 1 Module 20 Teeth 90° Angle Drive Steering Gear Device Simple Mechanical DIY Module with 8mm Shaft\u003c\/h3\u003e\n\u003cp id=\"b\"\u003e1:1 Right Angle Bevel Gearbox for Simple DIY Mechanical Application.\nSpecification: built-in 1 module 20 teeth bevel gears, 8 mm\/ 0.3\" shaft, max\ntorque rating: 5 N.M\/ 3.6 ft.lbs , max rotation speed: 1500 rpm Motor drive\ncan be realized with coupling and belt pulley gear. Material: Aluminum alloy \u0026amp;\n45 Steel, Overall Size: 56.2 x 56.2 x 30 mm\/ 2.2 x 2.2 x 1.2 inch. Note: it's\nsimple steering gear, can not used for high torque and high accuracy CNC\napplication, and the input \u0026amp; output shaft is not avaliable to replace. Note:\nthe scratches on the shaft were left for installation, it's not used, pls do\nnot buy if you mind.\u003c\/p\u003e \n\n\u003ch3\u003eProduct Features\u003c\/h3\u003e\n \u003cul class=\"a\"\u003e\n \u003cli\u003e1:1 L-shaped Right Angle Bevel Gearbox for Simple DIY Mechanical Application, 1 Input Shaft Drives 1 Short Output Shaft.\u003c\/li\u003e\n \u003cli\u003eSpecification: built-in 1 module 20 teeth bevel gears, 8 mm\/ 0.3\" shaft, max torque rating: 5 N.M\/ 3.6 ft.lbs , max rotation speed: 1500 rpm, backlash: 5 degree, if 3D file(stp) is needed, free to contact us.\u003c\/li\u003e\n \u003cli\u003eMotor drive can be realized with coupling and belt pulley gear.\u003c\/li\u003e\n \u003cli\u003eMaterial: Aluminum alloy with sandblasting oxidation \u0026amp; Stainless Steel Shaft, Overall Size: 56.2 x 30 x 56.2 mm\/ 2.2 x 1.2 x 2.2 inch.\u003c\/li\u003e\n \u003cli\u003eNote: it's simple steering gear, not recommended for high torque and high accuracy CNC application.\u003c\/li\u003e\n \u003c\/ul\u003e"}
